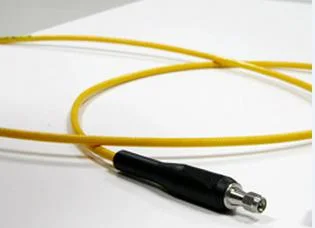

DC-50GHz customizable SMA male RF communication cable assembly copper material connector 50ohm SMA-Jb

StructureInner Conductor: Silver Plated CopperInsulation:  LD-PTFEInner Shield: Silver Plated Copper StripInterlayer:LD-PTFEOuter Shield: Silver Plated Copper WireJacket: FEPMechanical CharacteristicsDimensionmminchInner Conductor0.720.028Insulation2.210.087Inner Shield2.380.094Interlayer2.680.106Outer S

Featured Products

Structure
Inner Conductor: Silver Plated Copper
Insulation:  LD-PTFE
Inner Shield: Silver Plated Copper Strip
Interlayer:LD-PTFE
Outer Shield: Silver Plated Copper Wire
Jacket: FEP

Mechanical Characteristics
Dimensionmminch
Inner Conductor0.720.028
Insulation2.210.087
Inner Shield2.380.094
Interlayer2.680.106
Outer Shield3.140.124
Jacket3.600.142
Weight0.034kg/m
Min Bending Radius( Dynamic 36.0mm),( Static 14.4mm)
Insertion/Withdrawal>5000
Operating Temperature-55ºC~+125ºC
Electrical Characteristics
VSWR Max 18GHz26.5GHz40GHz50GHz
2.92mm1.25:11.30:11.30:1--
2.4mm1.25:11.30:11.30:11.35:1
Impedance50 ohms
Velocity of Propagation76%
Screening Effectiveness>90 dB
Amplitude Change VS Temperature≤±0.05dB@50GHz
Phase Change VS Bending≤±5°@50GHz
Attenuation(25ºC)
Frequency  (MHz)dB/100ftdB/100m
100013.4 43.8
300023.3 76.4
600033.2 108.8
1200048.2 158.1
1800058.5 191.8
2650071.6 234.8
4000088.9 291.7
50000100.2 328.5
Power handling(25ºC,Sea Level,Cable)
Frequency  (GHz)Watts
1000250
3000140
6000130
1200080
1800072
2650066
4000060
5000056
