Heavy-duty 32-pin connector rectangular connector power cord wire connector Harting 09330162711 09330162611

Cable entry protection:1. Universal cable glands2. Special cable clamp with strain relief,bell mouthed cable fitting and anti-twist devices3. Cable gland with normal or multiple seal4. Extensive range of accessoriesHoods:1. low or high construction2. Top or side cable entry .1 or 2 locking leversMale insert with:1. screw termina

Featured Products

Heavy Duty 32 Pin Connector Rectangular Connector Power Cable Wire Connector Harting 09330162711 09330162611Heavy Duty 32 Pin Connector Rectangular Connector Power Cable Wire Connector Harting 09330162711 09330162611Cable entry protection:
1. Universal cable glands
2. Special cable clamp with strain relief,bell mouthed cable fitting and anti-twist devices
3. Cable gland with normal or multiple seal
4. Extensive range of accessories

Hoods:
1. low or high construction
2. Top or side cable entry .1 or 2 locking levers

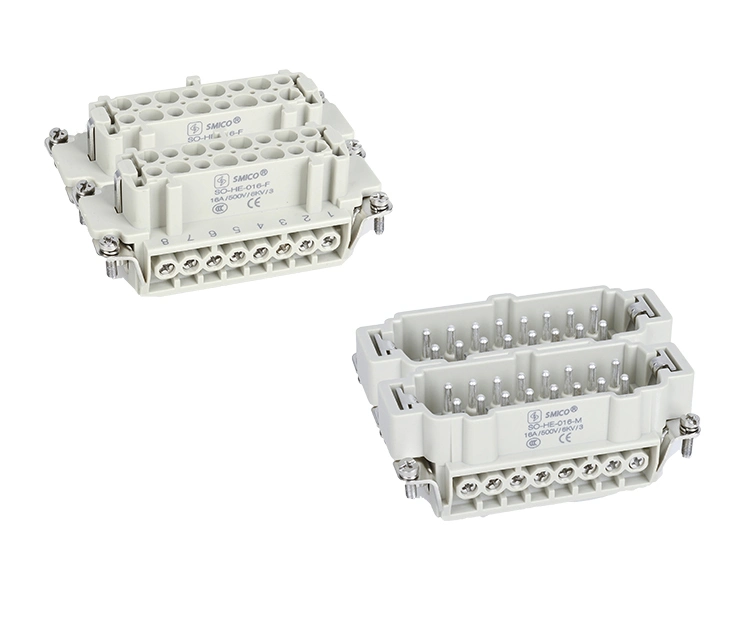

Male insert with:
1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminal

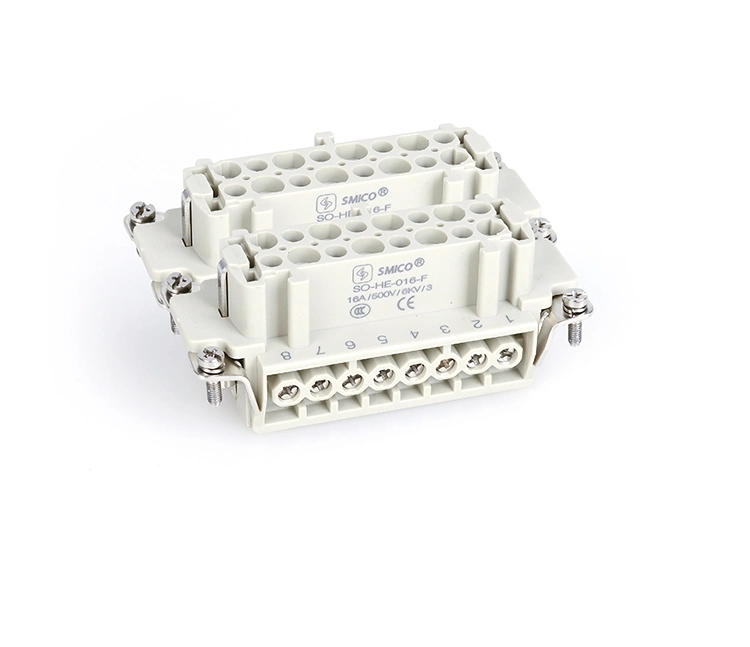

Female insert with:
1. screw terminal or crimp terminal(order contacts separately) or cage-clamp terminal
Housing:
1. Housing(bulkhead mounting) with or without thermoplastic or metal covers,1 or 2 locking levers
2. Housing(surface mounting) low or high construction with or without thermoplastic or metal covers,1 or 2 locking levers,1 or 2
cable entries
3. Hood(cable to cable) low or high construction for cable to cable connections
Accessories:
1. Protective covers available
2. Code and guide pins for coding
3. Special insert fixing screws for use without hoods and housings
4. Label according to CSA-approval
Heavy Duty 32 Pin Connector Rectangular Connector Power Cable Wire Connector Harting 09330162711 09330162611
Characteristics
Covers wide range of cross sections
Screw termination with wire protection
Insert
Number of contacts
32+PE
Electrical data acc. to EN 61 984

---Rated current
16A
---Rated voltage conductor
500V
---Rated impulse voltage
6kV
---Pollution degree
3
---Pollution degree 2 also
16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA
600V
Insulation resistance
≥1010Ω
Material
polycarbonate
Limiting temperatures
-40ºC...+125ºC
Flammability acc. to UL 94
V0
Mechanical working life(mating cycles)
≥500
Heavy Duty 32 Pin Connector Rectangular Connector Power Cable Wire Connector Harting 09330162711 09330162611
Characteristics:
Two levers at the bottom part of the housing
* Secure locking ensured by four locking points
* Minimal space requirements and high locking force
* Ideal for laterally arranged connectors
Two levers on the hood
* Secure locking ensured by four locking points
* Minimal space requirements and high locking forces
* Ideal for laterally arranged connectors and surface-mounted housings with caps
One lever at the bottom part of the housing
* Two locking points along the longitudinal axis
* Easy to access even with cable entering laterally
* Cap on the upper part of the housing can be locked
Hood&Housing
Material
aluminium die-cast
Colour
Grey
Locking element

---Lever type
metal elastic pressing
---Material
Stainless steel
Hoods/Housing sealing
NBR
Limiting temperatures
-40ºC...+125ºC
Flammability acc.to UL 94
V0
Degree of protection acc.to EN 60529 for coupled connector
IP65
Heavy Duty 32 Pin Connector Rectangular Connector Power Cable Wire Connector Harting 09330162711 09330162611
Cable gland

Metal cable gland
Plastic cable gland
Hose cable gland
Material:
Nickel-plated brass
Nylon
Nylon
Seal Material
NBR
NBR

Degree of protection
IP68
IP68
IP54
Temperature range
Stat:-40ºC-100ºC
Dyn:-20ºC-80ºC
Stat:-40ºC-100ºC
Dyn:-20ºC-80ºC
-40ºC-+150ºC
Heavy Duty 32 Pin Connector Rectangular Connector Power Cable Wire Connector Harting 09330162711 09330162611Heavy Duty 32 Pin Connector Rectangular Connector Power Cable Wire Connector Harting 09330162711 09330162611
