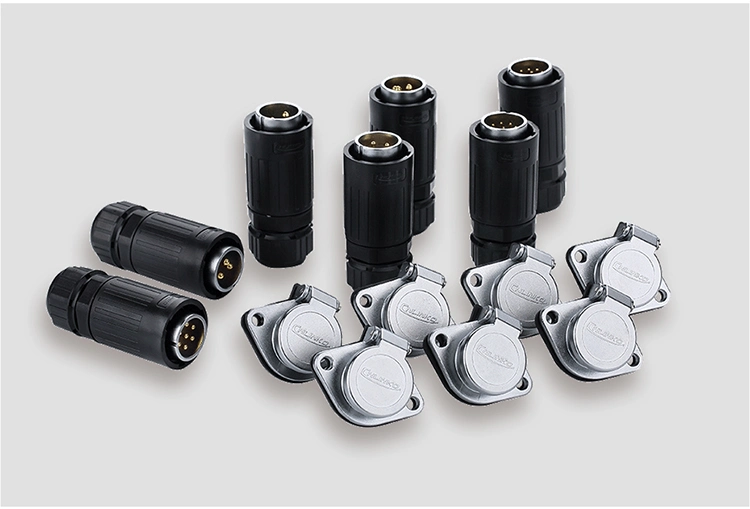

Insulated PBT shell Electrical Wiring 4 pin waterproof Connectors with Cap

YA-20 serials connector is with unique bayonet locking type design, rotary locking, which is easy to operate and widely used in LED display screen, Audio, commerce, entertainment, stage equipment, DMX lighting, Industrial equipment. It is including plug and socket with soldering for cable to ensure easy and reliable fully connected.

1. The multi-style inner core design (2-12 cores) meets the diverse industrial needs.
2. The material of the zinc alloy seat and internal components has complete electromagnetic and radio frequency interference protection.
3. Gold-plated contacts, high corrosion resistance and electrical conductivity, effective temperature rise due to current changes.
4. PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance.
5. The power supply (less than 7 cores) and the signal (12 cores) are compatible at the same time.
6. The product meets IP65/IP67 protection level in the assembled state.
7. Rated current: 5A/12A/20A rms.
8. 1/4 snap quick connection.
9. Certification: CE, CCC, UL, ISO9001, ROHS

Insulated PBT Shell Electrical Wiring 4 Pin Waterproof Connectors with Cap
Insulated PBT Shell Electrical Wiring 4 Pin Waterproof Connectors with Cap
Insulated PBT Shell Electrical Wiring 4 Pin Waterproof Connectors with Cap
Insulated PBT Shell Electrical Wiring 4 Pin Waterproof Connectors with Cap
Insulated PBT Shell Electrical Wiring 4 Pin Waterproof Connectors with Cap
Insulated PBT Shell Electrical Wiring 4 Pin Waterproof Connectors with Cap
Insulated PBT Shell Electrical Wiring 4 Pin Waterproof Connectors with Cap

Specifications
Connecting mode1/4 bayonet connecting type
Protection levelIP65/IP67
Cable specification2.5~4mm2 /14-12AWG
Diameter rangeΦ8mm ~Φ12mm
Contact diameter×QtyΦ2.7×4
Current rating(A)20A
Operating voltage(AC.V.rms)500V
Withstand voltage(AC.V)1min2500V
Contact resistance<1mΩ
Insulation resistance>500MΩ
Durability≥500 mating&unmating cycles
Temperature rating-40°C~80°C
Method of connecting cableSolder
Prevent the combustion levelUL94-V0
Material
Shell&insulated partsHigh performance engineering plastics
Hardware metalZinc alloy(pearl hard chromium)
Contact pinCopper alloy(gold-plated)
SpringStainless steel
SealingSilica gel
Main characteristics
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover
Application industries
- Stage equipment- The smart grid
- Medical equipment- Server
- Solar energy equipment- Ship equipment
- Electric power equipment- Vehicle equipment
- Communications equipment- Heavy machinery
