Push-pull connector/waterproof 12V connector/multi-wire connector

Push Pull Connectors/Waterproof 12V Connectors/Multi Wire ConnectorsFeatures:With multi-core design to fit with different industrial needsAlloy metal socket is with fully electromagnetic and radio frequency interference protectionWith gold-palted contact,stronger corrosion resistance and conductivityPBT materials shell,stable el

Featured Products

Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors

Features:
With multi-core design to fit with different industrial needs
Alloy metal socket is with fully electromagnetic and radio frequency interference protection
With gold-palted contact,stronger corrosion resistance and conductivity
PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
2/3/4/5/7pin for power connector,9/12 for signal connector,power and signal can be compatible match
IP67/IP68 when mated
Current rating:5A/12A/20A rms
Please indicate if you need the protection level more high
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors

LP-20-J09PE-01-021

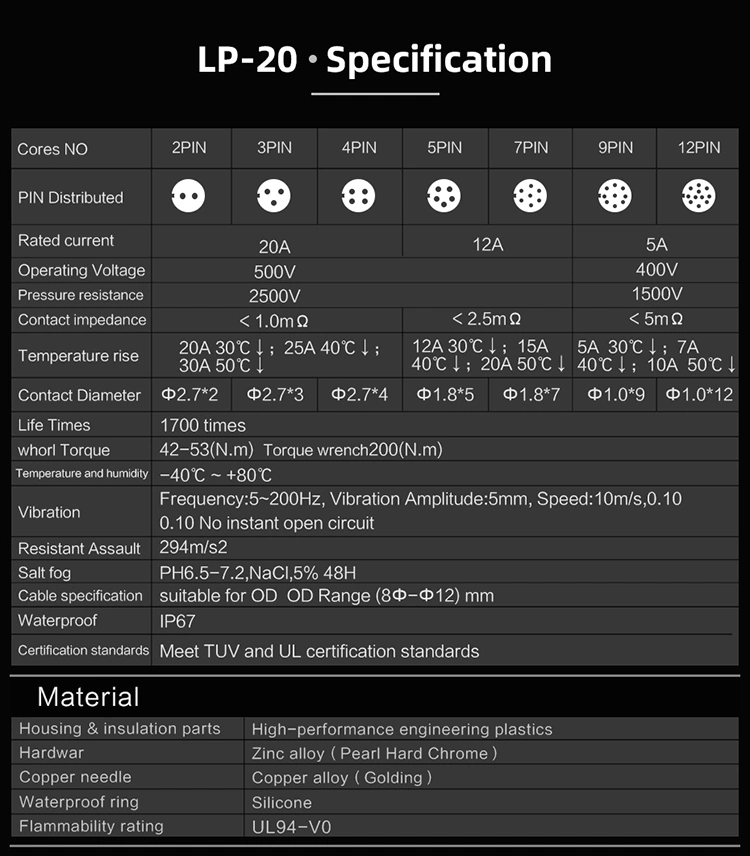

Specifications
Connecting modeLatching Lock connect
Protection levelIP65/IP67
Cable specification0.34mm2 ~0.75mm2 /22-20AWG
Diameter rangeΦ7mm ~Φ10mm
Contact diameter×QtyΦ1.0×9
Current rating(A)5A
Operating voltage(AC.V.rms)250V
Withstand voltage(AC.V)1min1500V
Contact resistance<5mΩ
Insulation resistance>500MΩ
Durability≥500 mating&unmating cycles
Temperature rating-40°C~80°C
Method of connecting cableSolder
Prevent the combustion levelUL94-V0
Material
Shell&insulated partsHigh performance engineering plastics
Hardware metalZinc alloy(pearl hard chromium)
Contact pinCopper alloy(gold-plated)
SpringStainless steel
SealingSilica gel
Main characteristics
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover
Application industries
- Stage equipment- The smart grid
- Medical equipment- Server
- Solar energy equipment- Ship equipment
- Electric power equipment- Vehicle equipment
- Communications equipment- Heavy machinery
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors
Push Pull Connectors/Waterproof 12V Connectors/Multi Wire Connectors

Packaging & Shipping
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner

Our Service
1. Supply OEM and ODM service
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4. Free samples are available
5. Supply the best service to you with the contact details below:

FAQ:
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits.
(all in all: cable to cable; cable to machines)

Q2: What classes do connectors have?
ShapeFrequencyFunction
circularhigh-frequencyfor printed board; cabinets;
rectangularlow frequencysocket connectors; for audio equipment, power, signal, etc.

Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).

1) Mutual Benefits: Our connectors are with high quality and competitive in price.

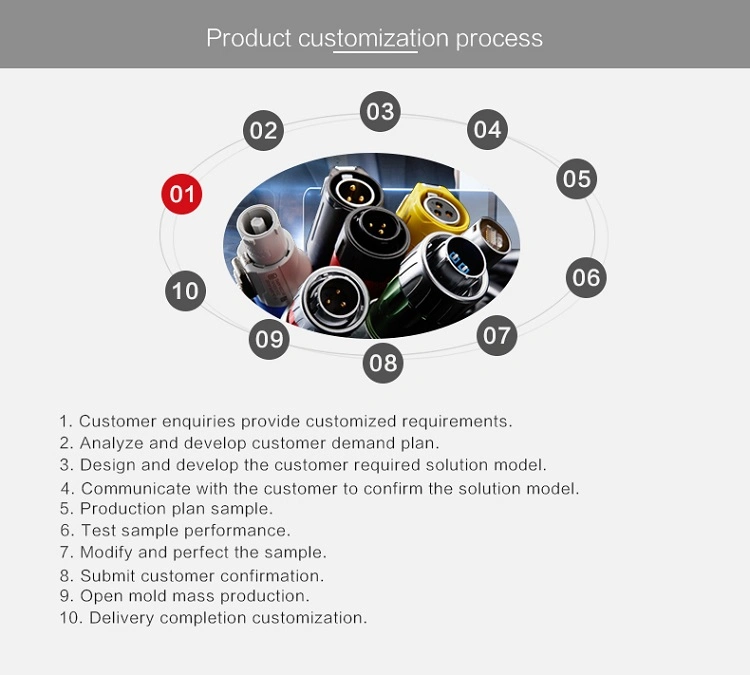

2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.

Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.

Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.

Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
