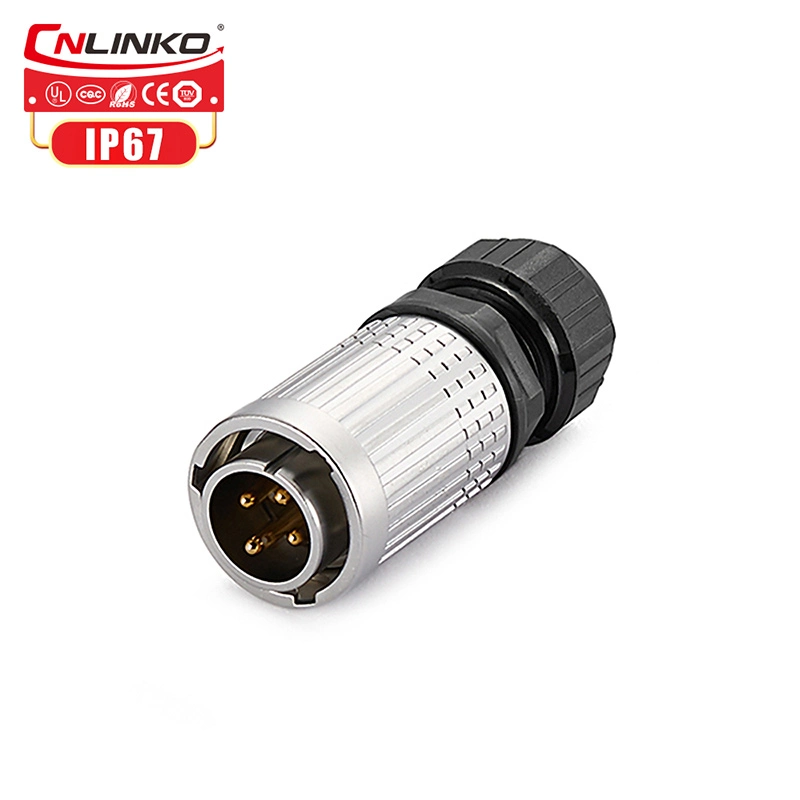

4 Pin Circular plastic Connector M20 Type Welding Cable Connector Waterproof ip65 with Dust CoverYA-20 serials connector is with unique bayonet locking type design, rotary locking, which is easy to operate and widely used in LED display screen, Audio, commerce, entertainment, stage equipment, DMX lighting, Industrial equipment.

Featured Products

4 Pin Circular plastic Connector M20 Type Welding Cable Connector Waterproof ip65 with Dust Cover

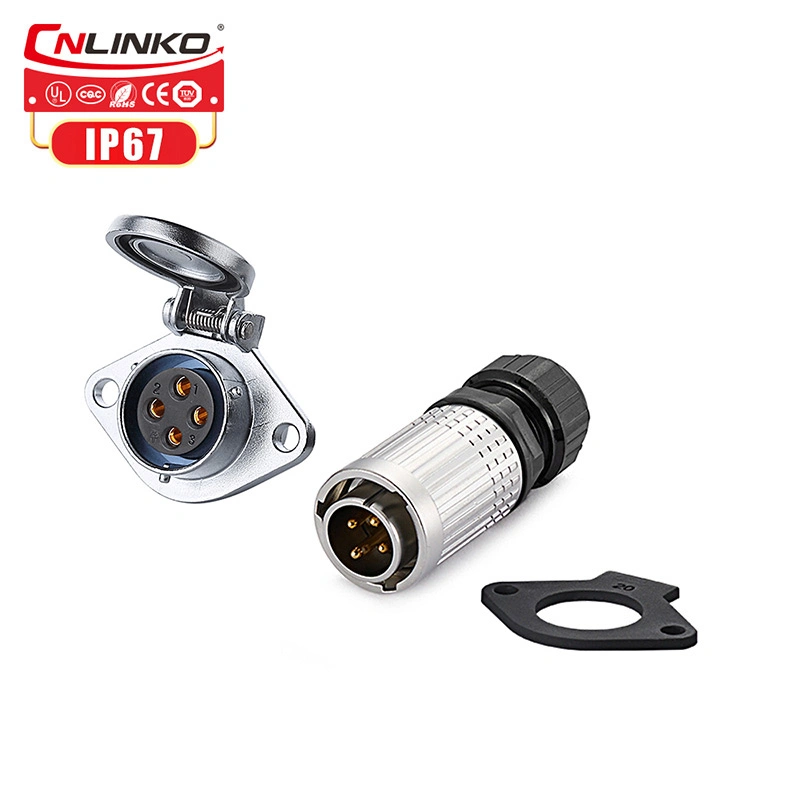

YA-20 serials connector is with unique bayonet locking type design, rotary locking, which is easy to operate and widely used in LED display screen, Audio, commerce, entertainment, stage equipment, DMX lighting, Industrial equipment. It is including plug and socket with soldering for cable to ensure easy and reliable fully connected.

1. The multi-style inner core design (2-12 cores) meets the diverse industrial needs.
2. The material of the zinc alloy seat and internal components has complete electromagnetic and radio frequency interference protection.
3. Gold-plated contacts, high corrosion resistance and electrical conductivity, effective temperature rise due to current changes.
4. PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance.
5. The power supply (less than 7 cores) and the signal (12 cores) are compatible at the same time.
6. The product meets IP65/IP67 protection level in the assembled state.
7. Rated current: 5A/12A/20A rms.
8. 1/4 snap quick connection.
9. Certification: CE, CCC, UL, ISO9001, ROHS

4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover
4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover
4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover
4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover
4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover
4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover
4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover

Specifications
Connecting mode1/4 bayonet connecting type
Protection levelIP65/IP67
Cable specification2.5~4mm2 /14-12AWG
Diameter rangeΦ8mm ~Φ12mm
Contact diameter×QtyΦ2.7×4
Current rating(A)20A
Operating voltage(AC.V.rms)500V
Withstand voltage(AC.V)1min2500V
Contact resistance<1mΩ
Insulation resistance>500MΩ
Durability≥500 mating&unmating cycles
Temperature rating-40°C~80°C
Method of connecting cableSolder
Prevent the combustion levelUL94-V0
Material
Shell&insulated partsHigh performance engineering plastics
Hardware metalZinc alloy(pearl hard chromium)
Contact pinCopper alloy(gold-plated)
SpringStainless steel
SealingSilica gel
Main characteristics
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover
Application industries
- Stage equipment- The smart grid
- Medical equipment- Server
- Solar energy equipment- Ship equipment
- Electric power equipment- Vehicle equipment
- Communications equipment- Heavy machinery

4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover
4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover
4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover
4 Pin Circular Plastic Connector M20 Type Welding Cable Connector Waterproof IP65 with Dust Cover



Packaging & Shipping
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner

Our Service
1. Supply OEM and ODM service
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4. Free samples are available
5. Supply the best service to you with the contact details below:




FAQ:
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits.
(all in all: cable to cable; cable to machines)

Q2: What classes do connectors have?

Shape
FrequencyFunction
circularhigh-frequencyfor printed board; cabinets;
rectangularlow frequencysocket connectors; for audio equipment, power, signal, etc.

Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).

1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.

Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.

Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.

Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
