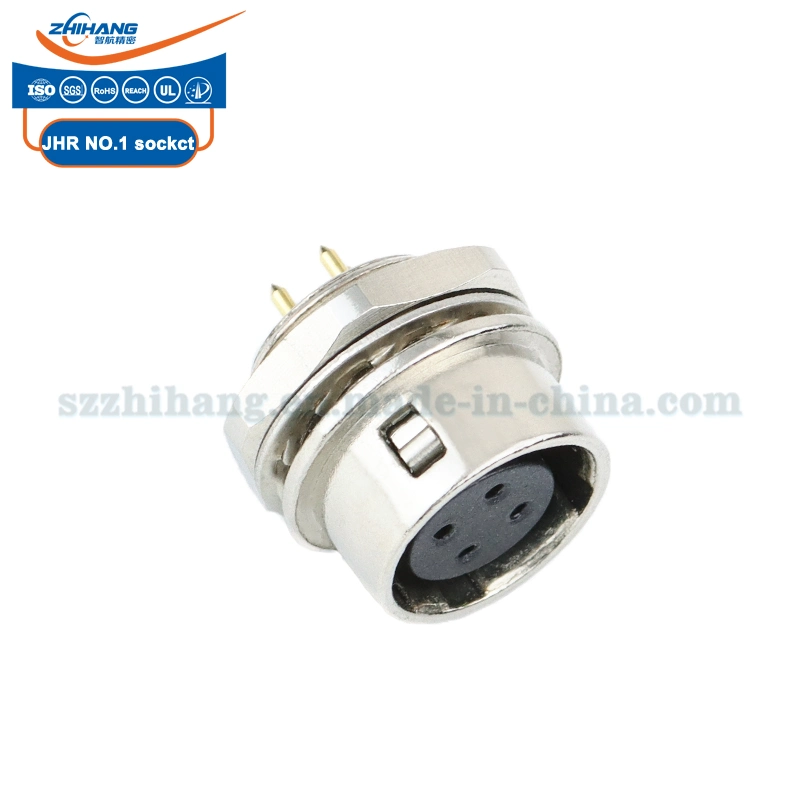

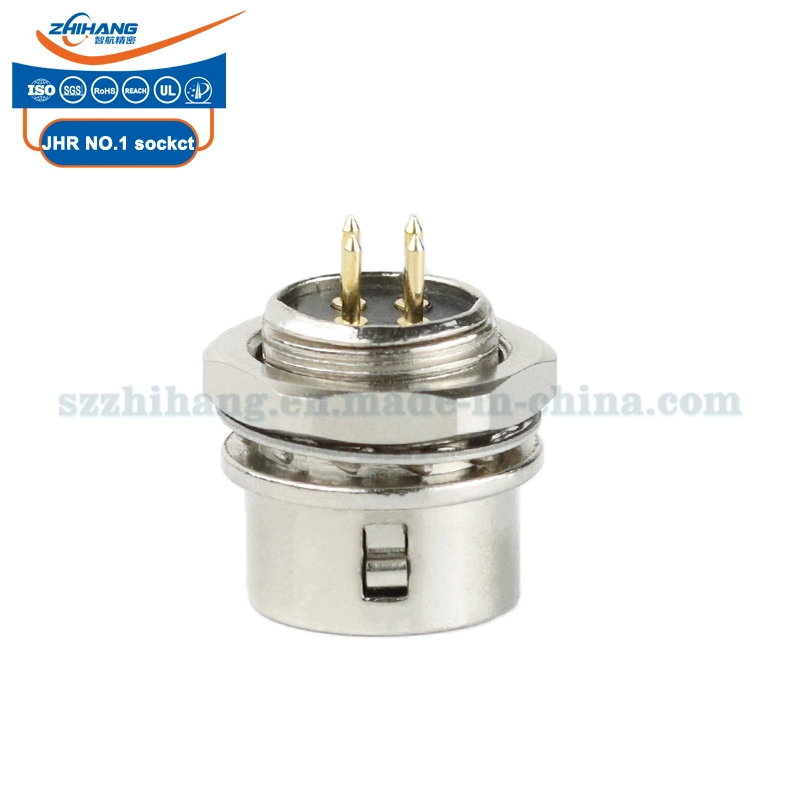

Product Name: JHR series panel mounting socket (print,female)
Multi key position anti misinsertion design, blind insertion design; plug and socket positioning design, plug and socket insertion to ensure the alignment during blind insertion, self-locking position sound lifting, PCB board connection, solder free wire, quick and convenient operation; the product meets the requirements of ROHS environmental protection of EU.
Applicable contacts: 6 pins.
Surface treatment: nickel on copper alloy surface of shell metal parts.
Model: JHR series panel mounting socket (print,female).
Positioning device: five key metal push-pull self-locking.
Mechanical service life: 1000 times.
Waterproof IP grade: IP50.
Salt spray corrosion test: > 48H.
Reliability: the use of high-quality parts ensures the service life of ZHIHANG connector.
Robustness: suitable for use in high vibration and strong impact environment.
Aesthetics:the high-tech design of ZHIHANG connector is very attractive, and the novel appearance can meet various customer requirements.
Anti electromagnetic interference: 360°shielding of metal shell of ZHIHANG connector provides all-round EMC protection.
|Connecting mode||Push-pull self-locking|
|Cable specification||0.1-2mm2 /26AWG|
|Diameter range||Φ3mm ~Φ5mm|
|Durability||≥1000 mating&unmating cycles|
|Method of connecting cable|
|Contact pin||Copper alloy(gold-plated)|
|- Vibration resistance,impact resistance,stretching resistance|
|- Stage equipment||- The smart grid|
|- Medical equipment||- Server|
|- Solar energy equipment||- Ship equipment|
|- Electric power equipment||- Vehicle equipment|
|- Communications equipment||- Heavy machinery|
ZHIHANG is a manufactuer that:
• Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
• Series has B, P, K, S, F, T, W, V, E, JHR10,etc.
• ISO90001:2015, ROHS, REACH,SGS Audited manufacturer, UL.
• All the items can work normally after 5000 times mating.
1. Are your company a professional manufacturer?
ZHIHANG: Yes, we specialized in producing circular push-pull connectors and cable assembly since 2014.
We are SGS audited manufacuter, passed ISO9001:2015 Quality managerment system, And we worked deal with Alibaba. Com as a golden supplier more than 5 years. All the products meet ROHS standards.
2. What is the MOQ?
ZHIHANG: No MOQ limited, depond on customer real needs.
3. Free sample:
ZHIHANG: Sample is available.But it should be paid in advance.The cost of sample will be refund after further order.
4. What about the delivery time?
ZHIHANG: It depends on the quantity.It usually takes 3-5 working days for small quantity.Mass production for 5-7 working days.
5. What is your payment terms?
ZHIHANG: 100% T/T deposite when customer place order.
6. Does your product have any warranty?
ZHIHANG: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
