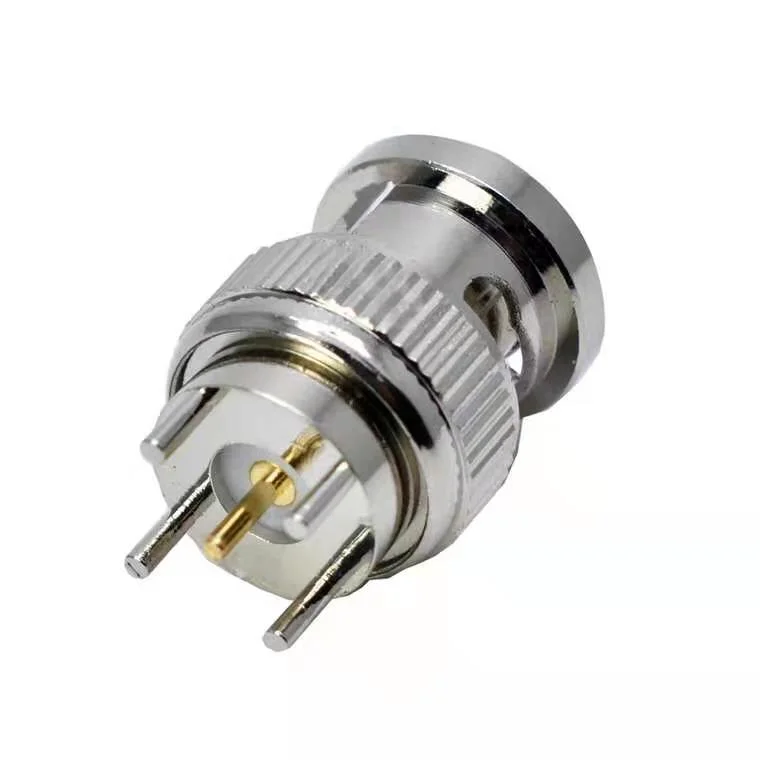

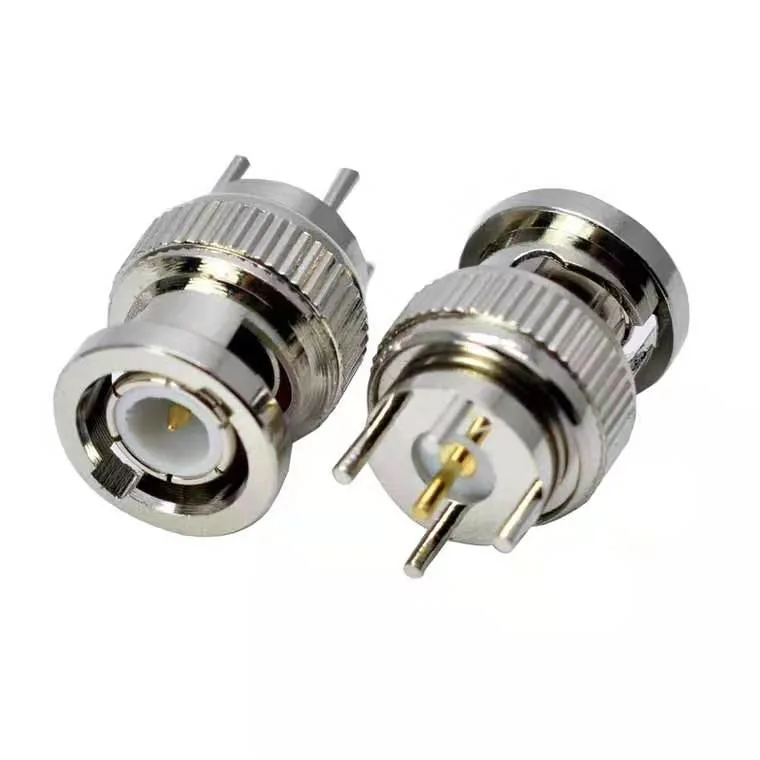

BNC male 4-pin connector PCB mount RF coaxial cable connector CCTV audio connector

SpecificationsElectrical SpecificationsConnector Impedance     50 ohmOperating Frequency Band0 - 4GHzRF Operating Voltage, maximum (vrms)       2700.00 VOuter Contact Resistance, maximum    0.20 mOhmInner Contact Resistance, maximum   0.30m

Featured Products

Specifications
Electrical Specifications
Connector Impedance     50 ohm
Operating Frequency Band0 - 4GHz
RF Operating Voltage, maximum (vrms)       2700.00 V
Outer Contact Resistance, maximum    0.20 mOhm
Inner Contact Resistance, maximum   0.30mOhm
Insulation Resistance, minimum 5000 Mohm
VSWR   <1.3
Insertion Loss        typical  0.05×√f dB
Mechanical Specifications
Mating cycles   500 cycles
Recommended mating torque   0.7-1.1Nm
Environmental Specifications
Operating Temperature    -40°C to +125 °C
Storage Temperature  -55°C to +125 °C
Components
Name          Material     Plating
Body       Brass         Tri-metal
Inner Contact  Phosphor copper       Gold
Insulator        PTFE      ---
